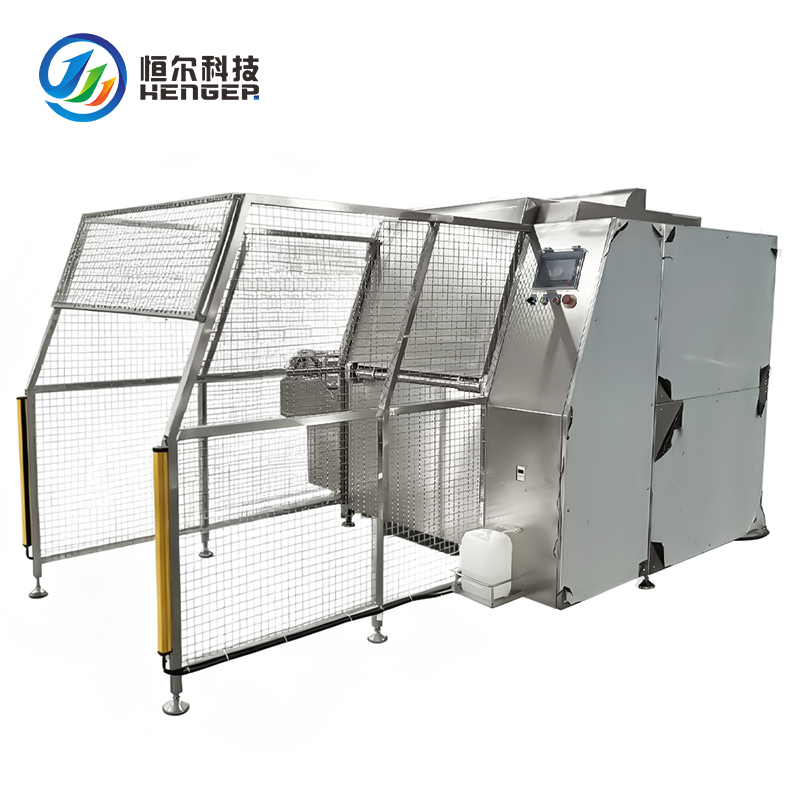

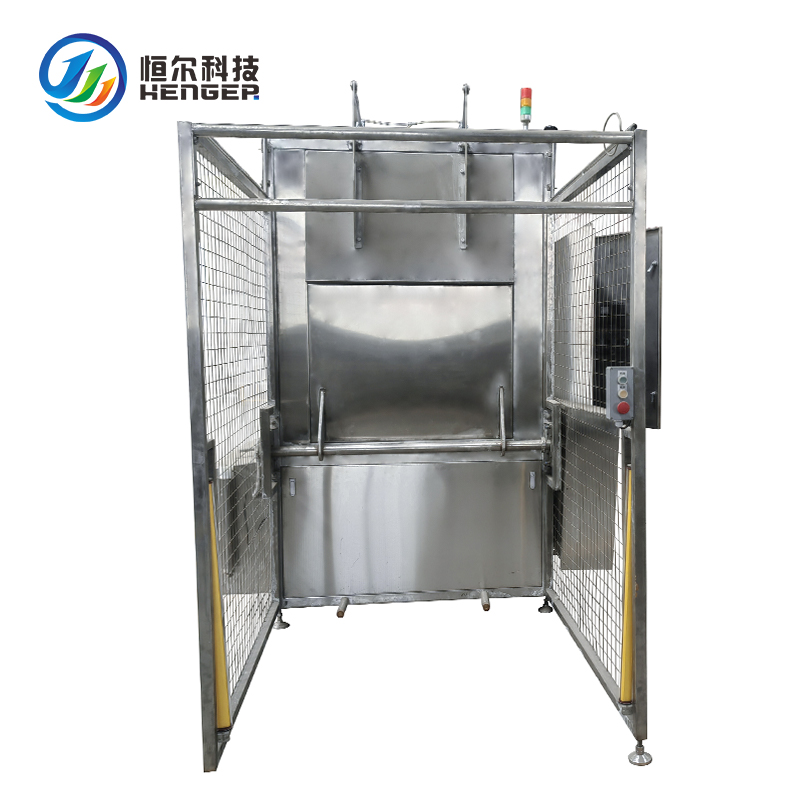

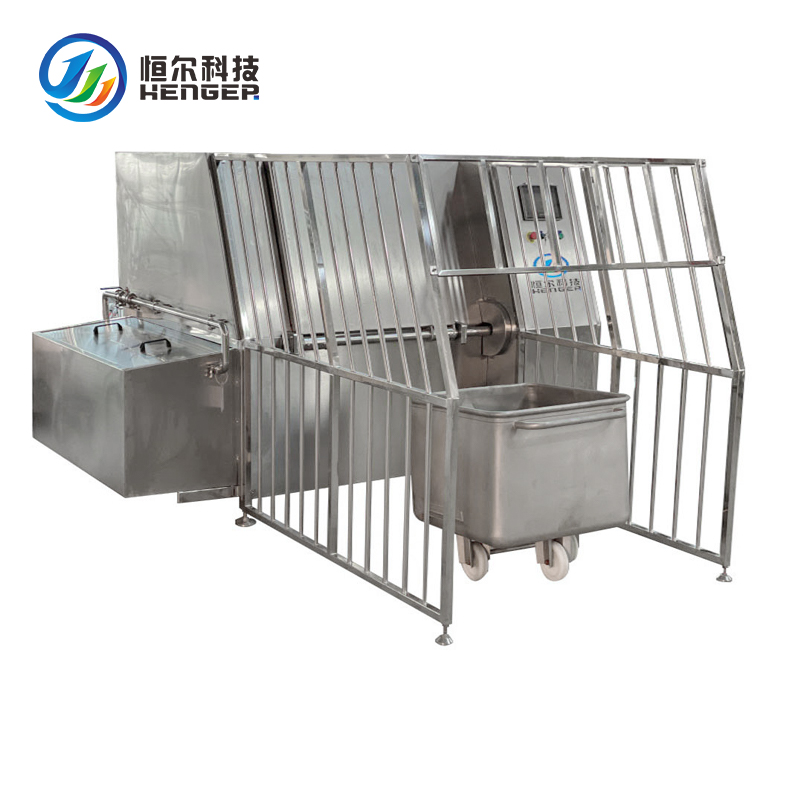

Henger 200L Meat Trolley Washing Machine
Product Highlights:
✅ Integrated Loading & Unloading - Built-in loading and unloading structure, no manual handling of heavy meat trolleys, labor-saving
Product Introduction:
Technical Specifications:
| Parameter | Specification |
|---|---|
| Main Material | SUS304 Food-Grade Stainless Steel (2.0mm thick) |
| Standard Voltage | 380V/50HZ (Customizable) |
| Total Power | 11KW |
| Water Pump Power | 9.2KW |
| Flip Motor Power | 1.1KW |
| Nozzle Power | 0.37KW |
| Machine Size | 318022501870mm (Excluding slag discharge device) |
| Water Tank Capacity | 800L (1 circulating tank + 1 clean water tank) |
| Water Consumption Per Cycle | 10-20L |
| Maximum Cleaning Capacity | 60 PCS/h |
| Maximum Lifting Height of Trolley | 2160mm |
| Steam Pressure | 0.1MPa |
| Steam Consumption | 100Kg/h |
| Tap Water Pressure Requirement | ≥ 0.2MP |
| Core Accessories Brand | Water Pump: Yuehua; Motor: Xingze; Reducer: Jiahuang |
| Control System | PLC Intelligent Control (With automatic soap dispensing) |
| Cleaning Method | 360° High-Pressure Spray + Steam Heating + Rinsing |
Core Functions & Advantages:
360° Rotating Arm Cleaning - The high-pressure rotating spray arm with multi-directional nozzles thoroughly cleans all inner and outer surfaces of 200L standard meat trolleys, effectively removing meat residue, blood stains and grease, meeting the high hygiene standards of food processing industry.
Automatic Soap Dispensing System - The intelligent electronic detergent dosing system accurately controls the addition amount and mixing ratio of cleaning agent, improving cleaning effect while avoiding waste, and realizing fully automatic operation without manual intervention.
Dual Tank Water Recycle System - Equipped with independent circulating water tank and clean water tank, the cleaning water is filtered and recycled for secondary use, and the rinsing water volume is adjustable according to actual needs, which saves more than 70% water compared with traditional manual cleaning.
Steam Heating Sterilization - The built-in steam heating system with 0.1MPa steam pressure realizes high-temperature cleaning and sterilization at the same time, effectively killing bacteria on the surface of meat trolleys and ensuring food safety in the processing and transportation process.
PLC Intelligent Control - The professional PLC control system allows free adjustment and setting of cleaning process parameters such as cleaning time, water pressure and detergent dosage for different dirt conditions, with real-time operation status display and simple one-click operation.
Integrated Loading & Unloading Structure - The built-in automatic loading and unloading device realizes smooth transportation of meat trolleys in and out of the cleaning chamber, eliminating the need for manual handling of heavy trolleys, reducing labor intensity and improving operation efficiency.
Multiple Safety Protection Designs - The machine is equipped with multiple safety interlock protections in the cleaning process, which will automatically stop the operation in case of door opening, abnormal water pressure or other abnormal conditions, ensuring the safety of operators and equipment.
Modular Design & Easy Maintenance - All components adopt modular assembly design, with easy access to internal parts, convenient daily cleaning and maintenance, and fast replacement of wearing parts, reducing equipment downtime.
Application Scenarios
Slaughterhouses: Cleaning of meat transport trolleys, material handling trolleys and other equipment
Meat Processing Plants: Daily cleaning of production line trolleys, raw material and finished product transport trolleys
Food Factories: Cleaning of various food transport trolleys and storage bucket trucks
Frozen Food Processing Enterprises: Cleaning of low-temperature transport trolleys and turnover bucket trucks
After-Sales Service:
Customization Service - Free voltage customization according to the local power supply standards of different countries and regions; support non-standard trolley size customization with free professional design for large orders.
Quality Warranty - 1-year free warranty for core components including water pump, motor and reducer; lifetime maintenance service for the whole machine.
Technical Support - 24/7 online technical support with professional engineers providing one-to-one solution; free on-site installation and operation training for large orders.
Spare Parts Supply - Global spare parts supply system with sufficient stock of common wearing parts, ensuring fast delivery and replacement.
Shipping Service - Professional international logistics cooperation, providing door-to-door shipping service including customs clearance for global customers, with fast and safe transportation.
