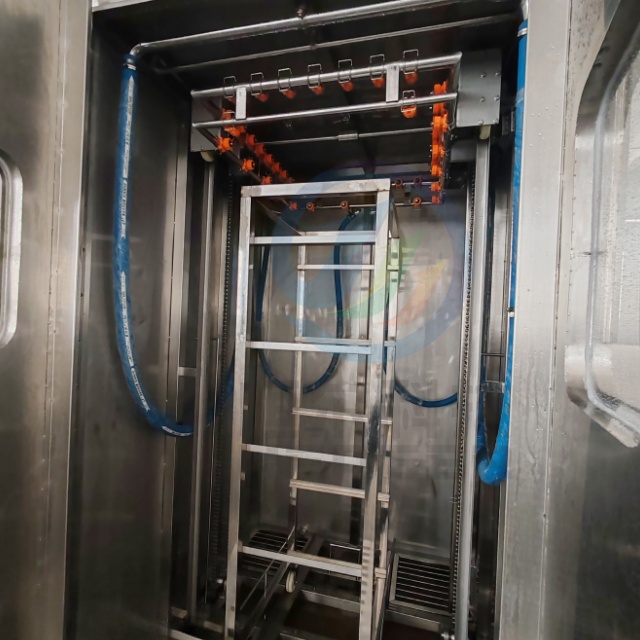

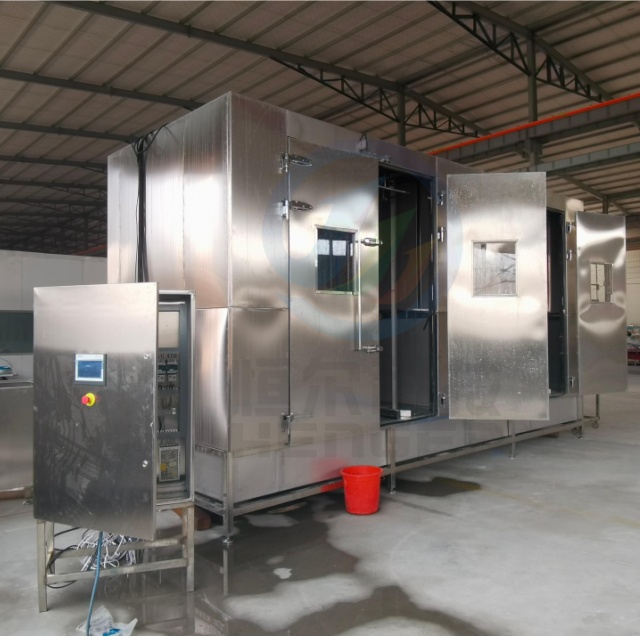

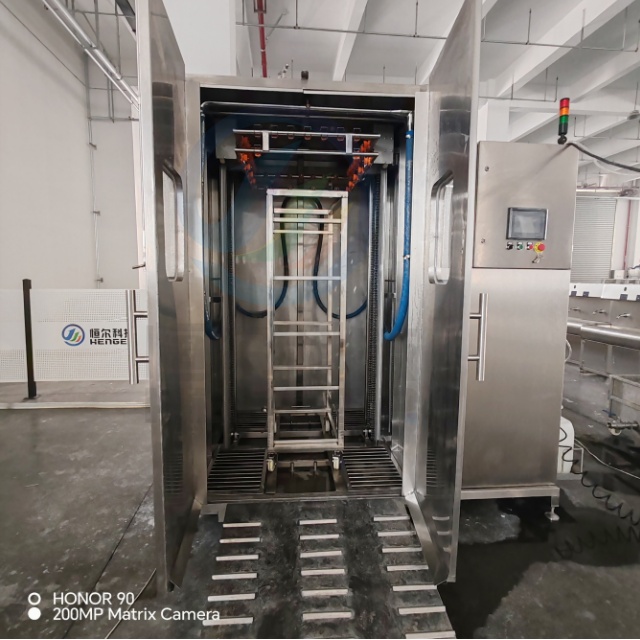

Henger Cart Trolley Washing Machine for washing smoking trolleys and frames is designed for effective sanitization of large-sized equipment used in smoking and meat processing facotry. This machine allows for quick and high-quality removal of fat, protein and smoke contaminants from the surfaces of frames, trolleys and hangers.
Key benefits:
- Custom manufacturing - the equipment is adjusted to the dimensions of your smoking cart or frame.
- High washing efficiency thanks to a multi-level spray system with adjustable pressure.
- Durable construction made of AISI 304 stainless steel - resistant to aggressive environments and disinfectants.
- Automation of processes: control of temperature, washing time, water and chemical consumption.
- Ergonomics and safety - automatic lifting system, emergency stop, thermal protection.

Technical advantages:
- Washing at temperatures up to 85 °C
- Built-in filtration and circulation system of the cleaning solution
- Economical consumption of water and detergents
- Possibility of connection to a steam generator or boiler
- Compatible with compressed air systems
库存: 0
Inquire
Add to Basket

Application:


- Meat processing plants and smokehouses
- Fish processing plants
- Semi-finished product production
- Poultry processing plants


Machine Specification

Overall dimensions:Manufactured according to dimension of your trolley cart or smoking frame


Installed capacity:To be specified depending on the configuration


Control voltage: Standard 380V,50HZ,3P ;Can be customized according to your local voltage


Product Specification:Individual configuration


Washing performance:Depending on the size of the carts - up to 50-60 pcs/hour


Control mode:Control Panel / Automatic Mode


Safety precautions:Emergency stop, overheating protection, insulatio


Spray system:Multi-level high pressure spray system Lifting spraying nozzles:Automated hydraulic/mechanical lifting


Water pressure for washing:[Standard: 3-6 bar / adjustable]


Water temperature:Up to 85 °C (optional with water heating)


Connection to the water supply:Standard connection to the water supply line


Water consumption:Depends on cycle and settings – on average 150–300 l/h


Compressed air source:Necessary for automation / presence of pneumatic drives


Compressed air consumption:To be specified according to the project - minimum


Material of manufacture:Stainless steel 304
